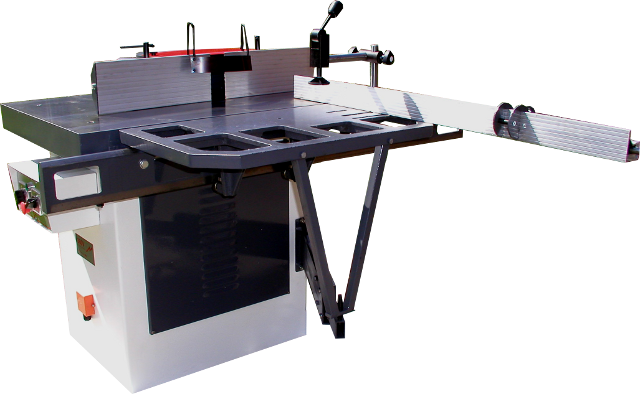

FU 250
Производитель:
ZMM Yakoruda
Тechnical specification of FU 250
| Technical data | Dim. | Value |
|---|---|---|
| Work table size | mm | 1000x700 |
| Spindle diameter | mm | 30 (32; 50 - optional) |
| Spindle tilt | deg | 90/45 |
| Vertical spindle travel | mm | 160 |
| Tool max diameter | mm | 250 |
| Spindle speed | min-1 | 3000/4500/6000/9000 |
| Tenoning carriage work table size | mm | 450x750 |
| Motor | ||
| Spindle moulder motor power | KW | 3.2 (4.0 optional) |
| Size | ||
| LxWxH | mm | 1650x1140x1100 |
| Weight | ||
| Net weight | kg | 450 |
Standard equipment
Large heavy work table made of cast iron. Diameter of the opening in the working table ø250mm (max.) with dust suction over the working table. Electronic reading of the revolutions. Spindle protector with diameter ø250 mm.
