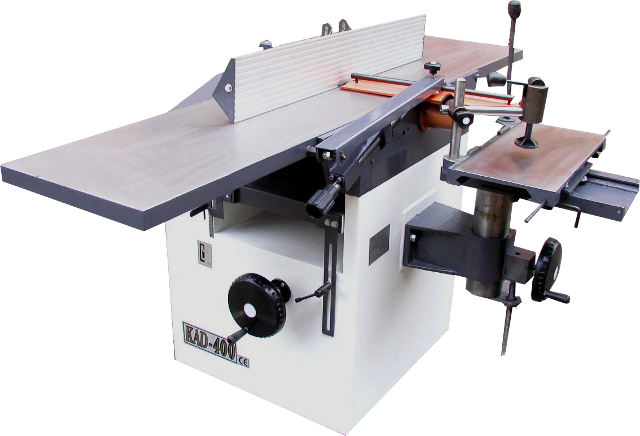

KAD 400 B2
Главная » Продукты » Дерево-обрабатывающие станки » Комбинированные фуговально-рейсмусовые станки » KAD 400 B2
Производитель:
ZMM Yakoruda
Тechnical specification of KAD 400 B2
| Technical data | Dim. | Value |
|---|---|---|
| Planer | ||
| Work table size | mm | 1920x400 |
| Maximal depth of cut | mm | 4 |
| Diameter of the cutter block | mm | 86 |
| Cutter block speed | min-1 | 5200 |
| Number of cutters | pcs | 3 |
| Thicknesser | ||
| Work table size | mm | 690x400 |
| Maximal planing thickness | mm | 220 |
| Maximal depth of cut | mm | 3 |
| Feeding speed | m/min | 8 |
| Cutter block speed | min-1 | 5200 |
| Mortiser | ||
| Work table size | mm | 400/250 (500) |
| Longitudinal stroke | mm | 100 (150) |
| Traverse stroke | mm | 100 (150) |
| Vertical stroke | mm | 100 (150) |
| Maximal drill diameter | mm | 16 |
| Drill speed | min-1 | 5200 |
| Motor | ||
| Planer motor power | KW | 3.0 |
| Thicknesser motor power | KW | 3.0 |
| Weight | ||
| Net weight | kg | 440 |
| Size of package | ||
| LxHxW | 2050x780x1100 | |
Standard equipment
Mortiser with max. 16mm drill. Cast-iron boards with grinded surface. Fine adjustable tables of the surface planer. Stable aluminum fence with tilt from 90° to 45°. Cutter block protector. Thicknessing planer working table with a central guiding column and a support. Switching in and disconnection of the thicknessing planer feeding without stopping the machine.
