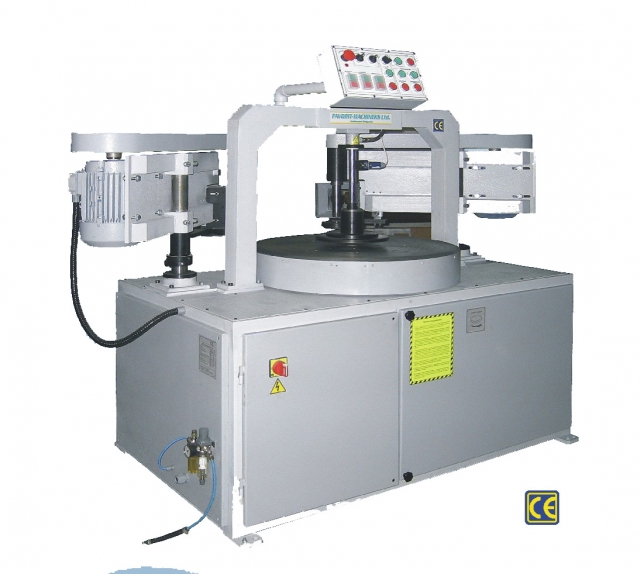

FK 400 S Round copy shaper
Производитель:
Favorit Machinex
Тechnical specification of FK 400 S
| Technical data | Dim. | Value |
|---|---|---|
| Hydraulically movable work table radius | mm | 400 |
| Maximal timber thickness | mm | 110 |
| Maximal work diameter | mm | 800 |
| Spindle speed | min-1 | 8000 |
| Sanding spindle speed | min-1 | 1500/3000 |
| Motor | ||
| Milling unit motor power | KW | 4 at 3000 rpm |
| Sanding unit motor power | KW | 4 at 1500 rpm |
| Hydraulic motor power | KW | 1.5 at 1500 rpm |
| Total unit power | KW | 9.1 |
| Size | ||
| LxWxH | mm | 1115x960x1580 |
| Weight | ||
| Net weight | kg | 1200 |
Standard equipment:
Hydraulic clamping system.
