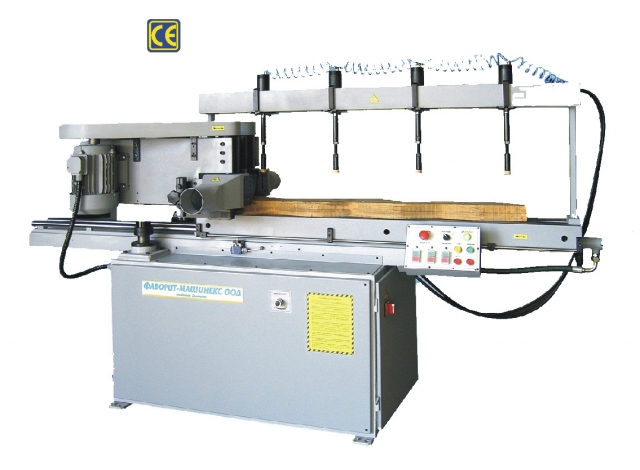

FK 200 Double-sided spindle moulders
Главная » Продукты » Дерево-обрабатывающие станки » Copy machines » FK 200 Double-sided spindle moulders
Производитель:
Favorit Machinex
Тechnical specification of FK 200
| Technical data | Dim. | Value |
|---|---|---|
| Hydraulically movable work table length | mm | 1710 |
| Hydraulically movable work table width | mm | 200 |
| Work table speed | m/sec | 0 - 2 |
| Back table speed | m/sec | 0.23 |
| Maximal timber thickness | mm | 110 |
| Maximal work length | mm | 1600 |
| Spindle speed | min-1 | 8000 |
| Motor | ||
| Milling stations motor power - 2 pcs. | KW | 4 at 3000 rpm |
| Hydraulic motor power | KW | 4 at 1500 rpm |
| Total unit power | KW | 10.2 |
| Size | ||
| LxWxH | mm | 2930x965x1460 |
| Weight | ||
| Net weight | kg | 680 |
