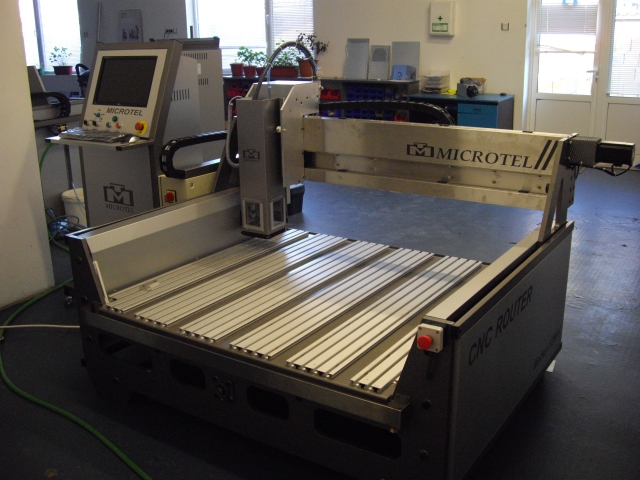

CNC Router 1222
Производитель:
Microtel
Technical specification of CNC Router 1222
| Technical data | Dim. | Value |
|---|---|---|
| Working dimensions | mm | 1200x2200 |
| Spindles type and power | kW | ELTE - 5.0 kW with water cooling |
| Spindle speeds | min-1 | 0-12000 variable speed |
| Spindle tool change | manual | |
| Work speed, maximal | m/min | 10 |
| Operation on vertical axis | mm | 300 |
| X, Y motors for movement in X,Y directions | type | servo motors |
| Mechanics of machine operation | mm | ball-screw mechanism |
| Work detail clamping | mechanical |
Standard equipment
Water cooling of the work area; Sensor for measuring the too length; Software, tool kit, spare parts, user manual, 12 month warranty, min. 10 years after warranty services
